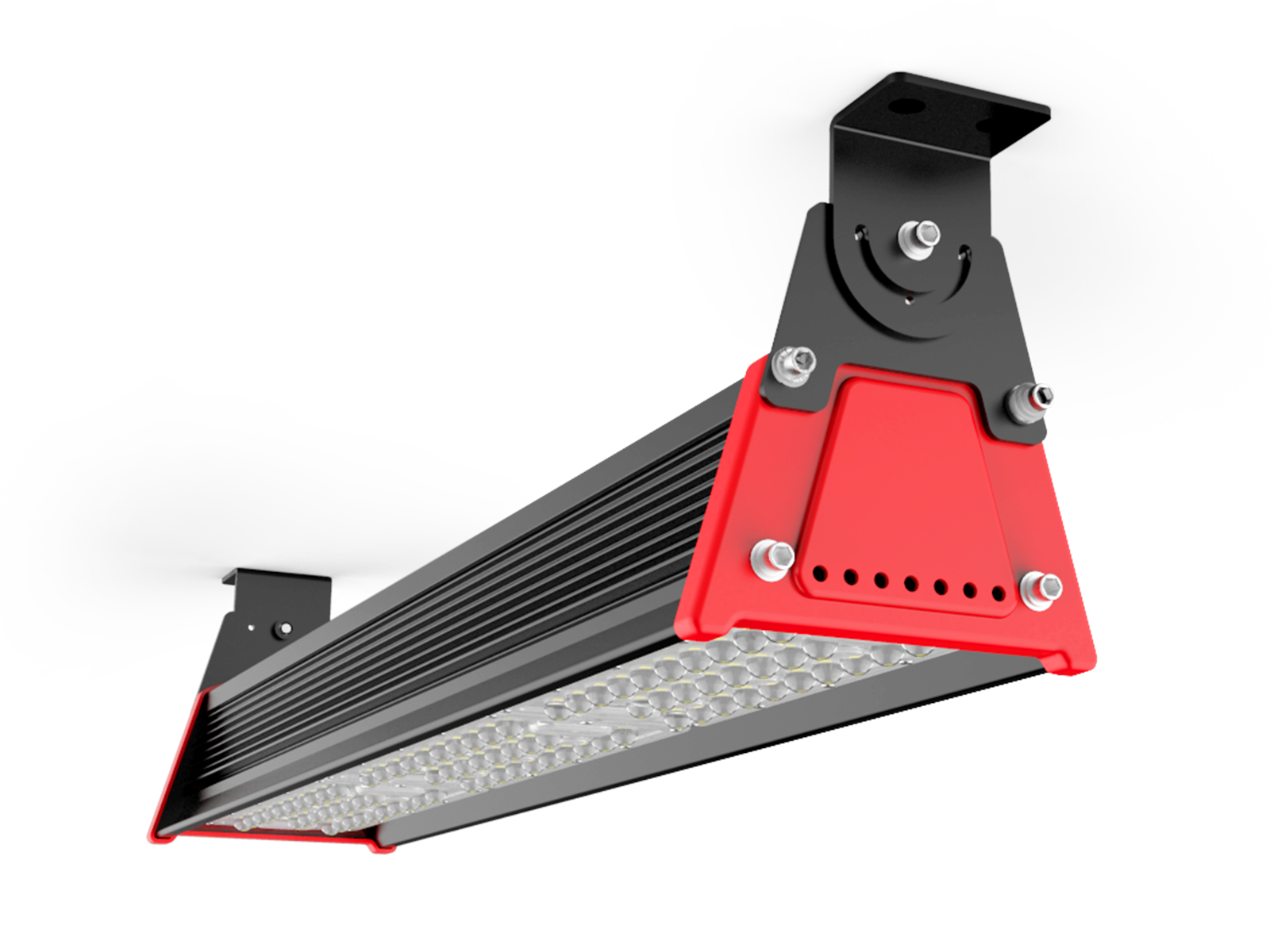

Piramide LED Linear High Bay, with long-and-narrow lighting pattern,
is specifically-designed for aisle in warehouses. It could be equipped with
PIR/Daylight dimming sensor that allows the fixture dimmed to high level
or SmartDim via a remote controller. When it detects presence of any
person or forklift working, the sensor would automatically dim light to low
brightness or turn off after detection area is vacated for a period of time.
Housing – die-cast aluminium, patent heat radiation structure, Upcast air
design for good heat dissipation
Reflector – anodized aluminium
LED – reducy energy consumption with L80/B10/F10 – 50.000 hrs lifetime
working under temp (-25°C to 55°C)
Standards – manufactured in accordance with tested as per PTPS IEC 62722
| Wattage | 120W |
|---|---|
| Lumen | 16200lm |
| “Sizes (mm)” | 948 x 137 x 102 h |
| IP | 65 |
| CRI | > 80 |
| CHIP | SMD |
| Voltage | 220 – 240V 50/60Hz |
| Usage | INDOOR/OUTDOOR |
| Kelvin | 2700K, 3000K, 4000K, 5000K, 6000K, 6500K |
| Color of Fitting | black |
| Driver / Ballast | 1-10 dimming, DALI, daylight control, LED driver |
